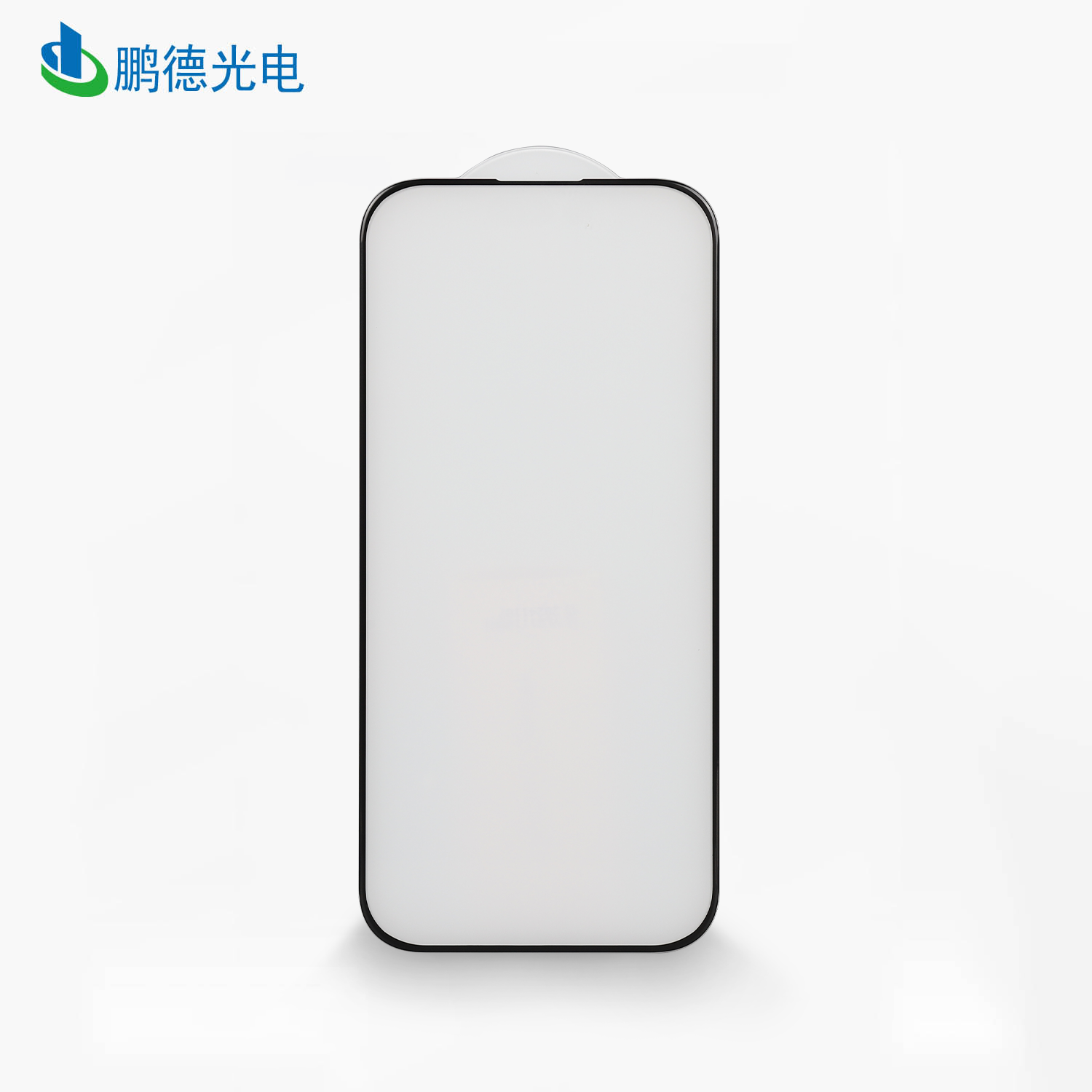

| Model | iPhone 17 3D Matte | |
| Material | Glass | Xuhong High Aluminum Silicon Glass |
| AB lamination | oca 200um | |
| Base material 110um | ||
| Silicone 70um | ||
| Fingerprint oil | Vacuum plating AF | |
| With white PC back panel | Empty with ears （Thickness 0.80mm） | |
| Craftsmanship | Thicknessack panel | Window Glass Thickness 0.37mm Sagitta: 0.55mm Overall thickness (without back plate) 0.75mm |
| Transmittance(Glass） | ≥92% | |
| Hardness | 9H | |
| Tempering time | 4 hours | |
| Inks | 1:1（Original color） | |
| Test items | Criteria | |
| Performance Testing | Trial patch test | Inner arc conformity<0.15, no dust ingress |
| Good exhaust performance, strong adsorption, no bubbles | ||
| Edge does not scratch hands, does not affect the protective cover | ||
| No gaps, excellent visual effect | ||
| No white border phenomenon in the window | ||
| Touch sensitivity test | After attaching the finished product to the phone, there should be no issues that affect touch control | |
| Transmission test | Transmittance：≧90%； Foggy: 8 ± 1.5 | |
| Roughness | Roughness：0.1±0.05； | |
| Sand adhesion | 3M #600 tape peeling test 100/100 no peeling，Acceptable: 3B | |
| Toughness test | Flexible 90 ° and U-shaped, non fragile edges | |
| Drop ball test | Drop test: 64G steel ball, impact the center point three times at 50cm without breaking | |
| Fingerprint-resistant | No fingerprint residue on the surface | |
| Surface pencil hardness test | Use Mitsubishi pencil 9H, load 500g, draw 3 lines on the surface without scratches | |
