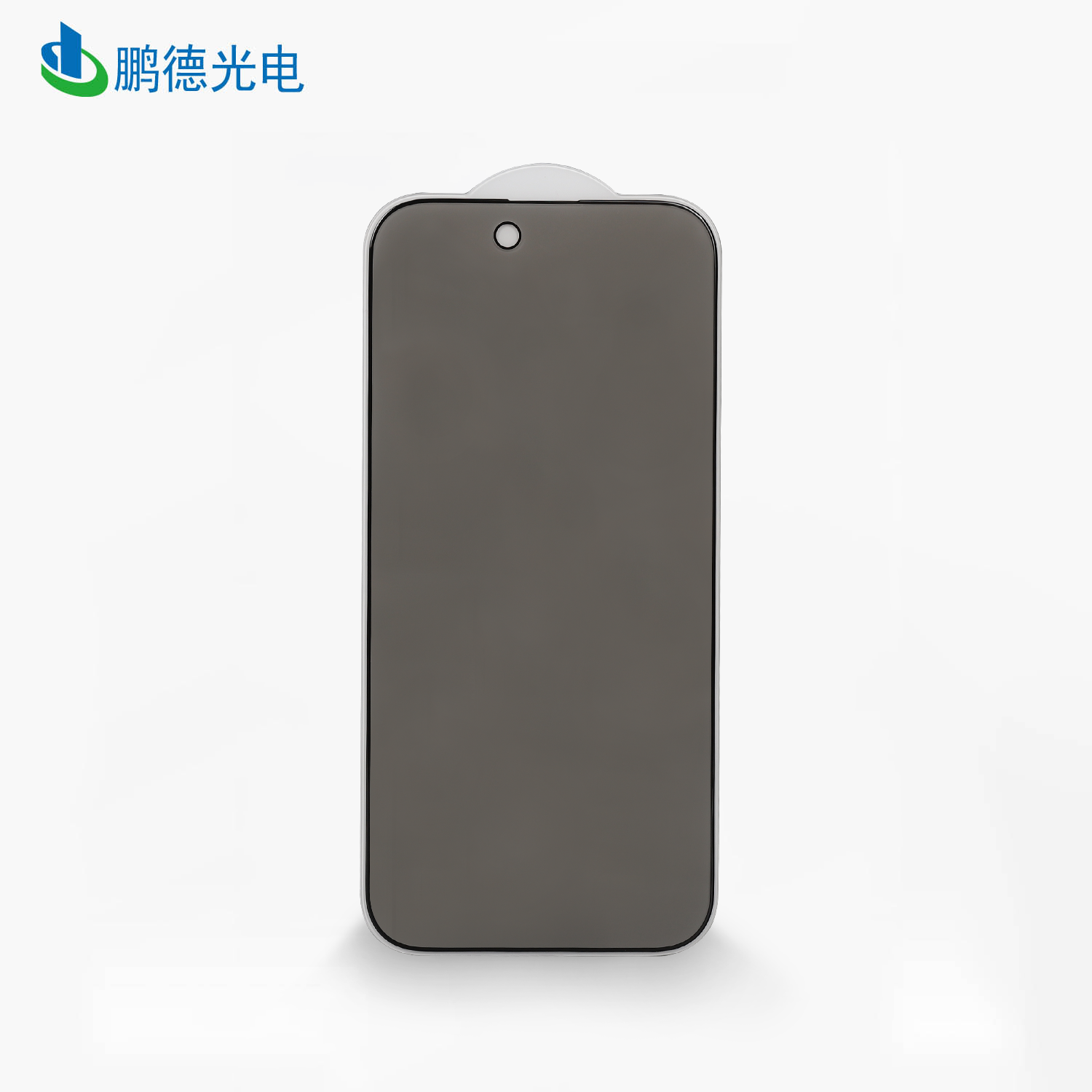

| Model | iPhone 17 Air 2.5D Privacy | |
| Material | Glass | Xuhong High Aluminum Glass |
| AB lamination | oca 280um | |
| Base material 120um | ||
| Anti-staticSilicone 80um | ||
| Fingerprint oil | Vacuum plating AF | |
| With white PC back panel | Empty with ears（Thickness 0.65mm） | |
| Craftsmanship | Thicknessack panel | Window Glass Thickness 0.33mm Overall thickness (without back plate) 0.810mm |
| Transmittance(Glass） | ≥92% | |
| Hardness | 9H | |
| Tempering time | 4 hours | |
| Inks | 1 :1（Original color） | |
| Test items | Criteria | |
| Performance Testing | Trial patch test | Inner arc conformity<0.06, no dust ingress |
| Good exhaust performance, strong adsorption, no bubbles | ||
| Edge does not scratch hands, does not affect the protective cover | ||
| No gaps, excellent visual effect | ||
| No white border phenomenon in the window | ||
| Touch sensitivity test | After attaching the finished product to the phone, there should be no issues that affect touch control | |
| Transmission test | Transmittance≧60% ； Foggy: 6.8% | |
| Anti peeping perspective | 180 degree anti peeping, with a viewing angle of less than 70 degrees | |
| Toughness test | Flexible 90 ° and U-shaped, non fragile edges | |
| Drop ball test | Ball drop test: 64G steel ball, 100CM impact center point three times, no breakage | |
| Water drop angle test | The water droplet angle is 115 °; After rubbing with 1 * 10000 # 1KG for 5000 times, the water droplet angle is above 105 ° | |
| Surface pencil hardness test | Use Mitsubishi pencil 9H, load 500g, draw 3 lines on the surface without scratches | |
